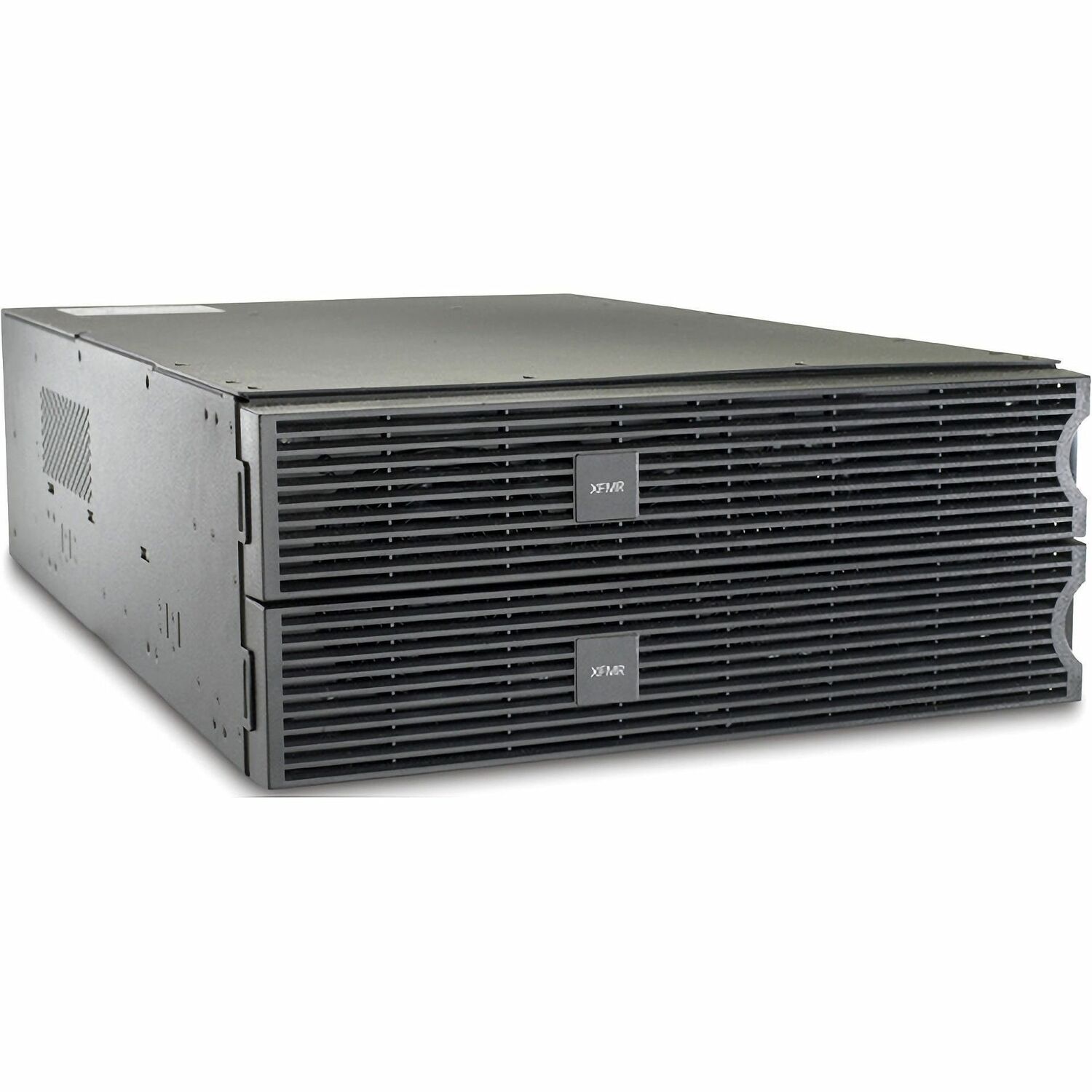

APC by Schneider Electric Step-Down 10kVA Rack-mountable Transformer

Item #: APWAPTF10KT01
Thumbnail image 1 of 5
Thumbnail image 2 of 5
Thumbnail image 3 of 5
Thumbnail image 4 of 5
Thumbnail image 5 of 5
APWAPTF10KT01 APWAPTF10KT01 APWAPTF10KT01 APWAPTF10KT01 APWAPTF10KT01
$3,804.99 / Each
Packaging: 1 Each
Ships 3-5 Business Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
10000 VA - 208 V Input - 120 V, 208 V AC, 240 V AC Output - 4U
  • Step down transformer converts high voltage output into low voltage output for powering low voltage AC equipment
  • Step down transformer placed upstream of UPS avoids inrush current & saturation eliminating need to oversize transformer
  • Includes horizontal, vertical, and toolless-mount varieties
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
APTF10KT01
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
Step-Down 10kVA Rack-mountable Transformer
Marketing Information

This transformer converts 208V input to 120V output. It is designed for use in environments requiring step-down voltage conversion. The unit includes rack mounting brackets, user manual, installtion guide, hardwire panel and documentation CD.

Packaged Quantity
1 Each
Product Type
Step Down Transformer
Catalog
General Line (consumer) Catalog
Catalog Page
NEW
Technical Information
Power Rating
10000 VA
Input Receptacle Type
Hard Wire 3-wire (2PH + G)
Output Receptacle Type
  • Hard Wire 3-wire (2PH + G)
  • Hard Wire 4-wire (2PH+N+G)
Output Receptacle Detail
  • 1 x Hard Wire 3-wire (2PH + G)
  • 1 x Hard Wire 4-wire (2PH+N+G)
Power Description
Input Voltage
208 V
Output Voltage
  • 120 V
  • 208 V AC
  • 240 V AC
Maximum Line Current
60 A
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Mounting Location
Front
Mounting Preference
Lower
Rack Height
4U
Height
6.9"
Width
17"
Depth
29.5"
Weight (Approximate)
220.46 lb
Miscellaneous
For Country/Region
United States
Additional Information
Acceptable Input Voltage: 200-240 VAC
Package Contents
  • Step-Down 10kVA Rack-mountable Transformer
  • Documentation CD
  • Hardwire panel
  • Installation guide
  • Rack mounting brackets
  • User manual
    • Certifications & Standards
    C-tick|CE|CSA|GOST|UL Listed|VDE
    Optimized Energy Efficiency
    Yes
    Product Take Back Program
    Yes
    Mercury Free
    Yes
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APTF10KT01_ROHS_DECLARATION&p_FileName=APTF10KT01KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759846&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759846&lang=en-us
    Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
    End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
    WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    2 Year
