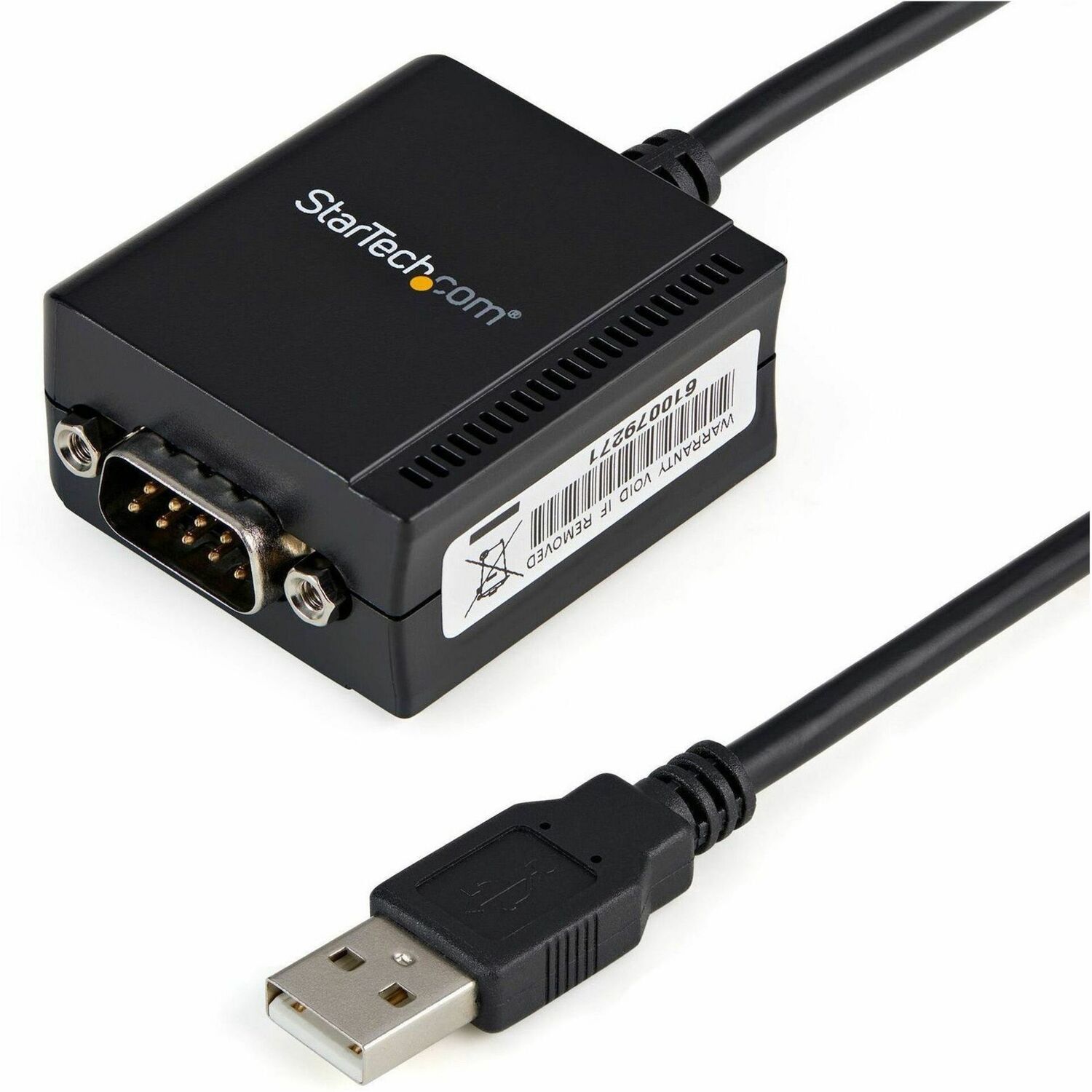

StarTech.com 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

Item #: STCICUSB2321F
Thumbnail image 1 of 5
Thumbnail image 2 of 5
Thumbnail image 3 of 5
Thumbnail image 4 of 5
Thumbnail image 5 of 5
STCICUSB2321F STCICUSB2321F STCICUSB2321F STCICUSB2321F STCICUSB2321F
$42.42 / Each
Packaging: 1 Each
Ships 6-10 Business Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
1 x 9-pin DB-9 RS-232 Serial - Male - 1 x USB 2.0 Type A - Male - Black - 1 Each - TAA Compliant
  • MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
  • CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup
  • COMPACT DESIGN: Designed with a small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet
  • EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
  • TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 115.2 Kbps; 256 Bytes FIFO; None/Odd/Even/Mark Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
ICUSB2321F
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
Marketing Information

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Data Transfer Adapter
Catalog
General Line (consumer) Catalog
Catalog Page
NEW
Technical Information
Connector Type on First End
DB-9 RS-232 Serial - Male
Connector Gender on First End
Male
Connector on First End Details
1 x 9-pin DB-9 RS-232 Serial - Male
Connector Type on Second End
USB 2.0 Type A - Male
Connector Gender on Second End
Male
Connector on Second End Details
1 x USB 2.0 Type A - Male
Cable Length
6 ft
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Plastic
Weight (Approximate)
3.17 oz
Miscellaneous
Package Contents
  • 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
  • 1 x Driver CD
  • 1 x Instruction Manual
Operating System Compatibility
  • Windows CE 4.2
  • Windows CE 5.0
  • Windows CE 6.0
  • Windows XP Embedded
  • Windows 98 Second Edition
  • Windows 2000 Server
  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Windows Server 2003
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Mac OS X 10.6 Snow Leopard
  • macOS Catalina 10.15
  • macOS Big Sur 11.0
  • macOS Monterey 12.0
  • macOS Ventura 13.0
  • Linux Kernel 3.0.x+ LTS
Additional Information
OS Compatibility:
  • Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS® 10.6 to 10.14
  • Linux 2.4.x to 4.11.x LTS Versions only
Certifications & Standards

FCC

Country of Origin
Taiwan
TAA Compliant
Yes
Environmentally Friendly
Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
2 Year
