StarTech.com

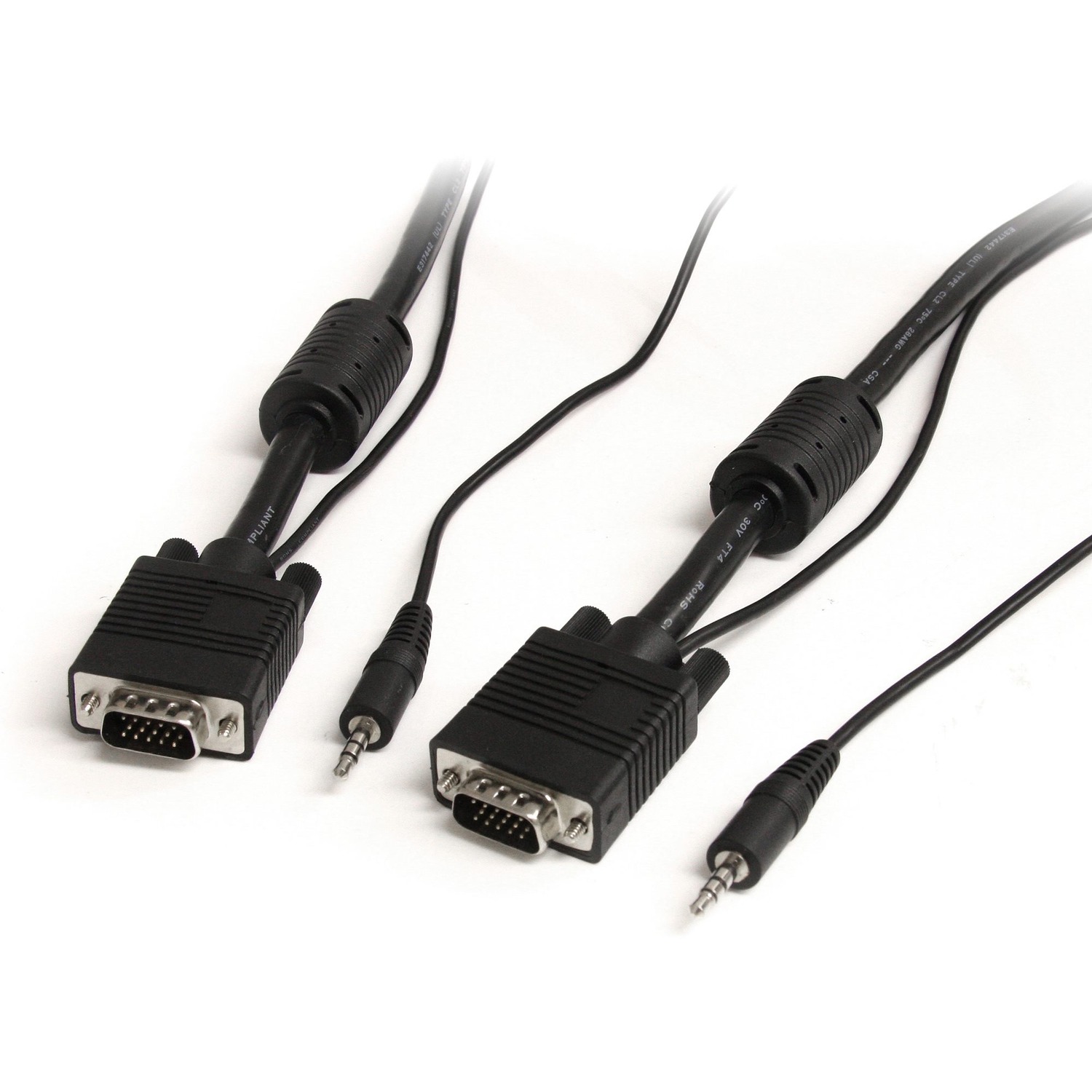

StarTech.com 15 ft Coax High Resolution Monitor VGA Cable with Audio HD15 M/M

Item #: STCMXTHQMM15A
Thumbnail image 1 of 2
Thumbnail image 2 of 2
STCMXTHQMM15A STCMXTHQMM15A
$31.04 / Each
Packaging: 1 Each
Ships 6-10 Business Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
15 ft Coaxial A/V Cable for Audio/Video Device, Monitor, Sound Card - First End: 1 x 15-pin HD-15 - Male, 1 x Mini-phone Stereo Audio - Male - Second End: 1 x 15-pin HD-15 - Male, 1 x Mini-phone Stereo Audio - Male - Supports up to 1920 x 1200 - Shielding - Nickel Plated Connector - 28 AWG - Black - 1 Each
  • Triple-coaxial + twisted-pair wire for crystal clear display
  • Impedance matched at 75 Ohms for full brightness and vibrant picture color
  • Molded connector ends with strain relief
  • Ferrite core eliminates EMI interference
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
MXTHQMM15A
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
15 ft Coax High Resolution Monitor VGA Cable with Audio HD15 M/M
Marketing Information
The MXTHQMM15A 15-foot High Resolution VGA Monitor Cable with Audio is a high quality SVGA cable designed to provide the highest video quality possible through VGA - a single cable solution, for connecting both video between a VGA video card and monitor, and audio connections between a sound card and external audio device. StarTech.com's high resolution VGA cable with audio features high quality male-to-male coaxial VGA cable, and is designed to eliminate picture "ghosting" and fuzzy images that are inherent to non-coaxial cables, while providing superior EMI interference protection by using ferrite cores near the connector ends. The 15-foot SVGA cable (VGA Cable with Audio) is backed by StarTech.com's Lifetime Warranty.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Packing
Bagged
Product Type
A/V Cable
Catalog
General Line (consumer) Catalog
Catalog Page
NEW
Technical Information
Cable Type
Coaxial
Cable Length
15 ft
Connector Type on First End
  • HD-15 - Male
  • Mini-phone Stereo Audio - Male
Connector Gender on First End
Male
Connector on First End Details
  • 1 x 15-pin HD-15 - Male
  • 1 x Mini-phone Stereo Audio - Male
Connector Type on Second End
  • HD-15 - Male
  • Mini-phone Stereo Audio - Male
Connector Gender on Second End
Male
Connector on Second End Details
  • 1 x 15-pin HD-15 - Male
  • 1 x Mini-phone Stereo Audio - Male
Connector Plating
Nickel
Conductor
Copper
Shielding
Yes
Device Supported
  • Audio/Video Device
  • Monitor
  • Sound Card
American Wire Gauge
28 AWG
Supported Resolution
1920 x 1200
Features
  • Molded
  • Strain Relief
  • Ferrite Bead
  • EMI Protection
Physical Characteristics
Color Family
Black
Product Color
Black
Jacket Material
Polyvinyl Chloride (PVC)
Weight (Approximate)
1.31 lb
Miscellaneous
Certifications & Standards
  • UL2919
  • CMG Rated
Environmentally Friendly
Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin
China
Lifetime
